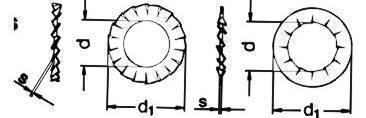

DIN 6798 A & DIN 6798 J
Screw
D1
D2
S
M 2
2.2
4.5
0.3
M 2.3
2.5
5
-
M 2.5
2.7
5.5
0.4
M3
3.2
6
M4
4.3
8
0.5
M5
5.3
10
0.6
M6
6.4
11
0.7
M8
8.4
15
0.8
M10
10.5
18
0.9
M12
13
20.5
1
M14
24
M16
17
26
1.2
