DIN_127B




Helical spring lock washers, spring steel

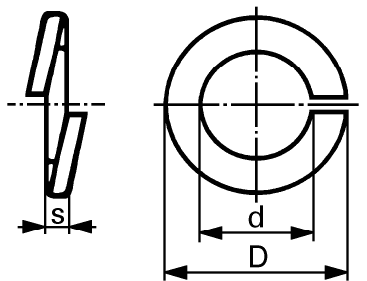

talco-india,nashik-DIN127B_daigram  DIN 127 B with smooth ends



 Screw

 d

 D

 S

 Yellow Zinc Plated

 M Quantity

 Min

 Max





 Quantity







100

 1000

 10000

 3,5

 3,6

 6,7

 0,8

 6.–

 2.20

 1.20

 4

 4,1

 7,6

 0,9

 6.–

 2.–

 1.15

 5

 5,1

 9,2

 1,2

 6.–

 2.–

 1.40

 6

 6,1

 11,8

 1,6

 6.–

 2.05

 1.50

 8

 8,1

 14,8

 2

 6.–

 3.05

 2.70

 10

 10,2

 18,1

 2,2

 6.20

 4.30

 3.80

 12

 12,2

 21,1

 2,5

 9.40

 8.20

 6.80

 16

 16,2

 27,4

 3,5

 22.–

 15.30

 13.10

 (18)

 18,2

 29,4

 3,5

 26.–

 19.10

 17.60

 20

 20,2

 33,6

 4

 35.25

 26.50

 23.50

 24

 24,5

 40

 5

 56.–

 43.50

 39.50
