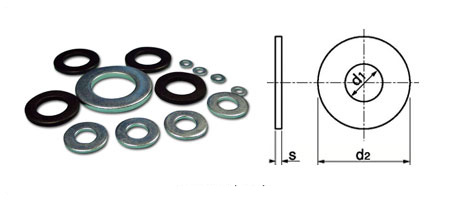

Products DIN Standards NF E25-513 L,LL Flat Washer
	Size No I.D THK OD Weight for KG / 1000 PCS       Type L Type LL Type L Type LL M3 3.2 0.8 12 14 0.66 0.92 M6 6.4 1.2 18 24 2.1 3.98 M8 8.4 1.5 22 30 3.84 7.71 M12 13 2.5 32 40 13.24 22.16 M16 17 3 40 50 24.36 41.08 M20 21 3 50 60 38.26 58.7 M22 23 3 55 - 46.38 - M24 25 4 60 - 73.7 - M30 31 4 70 - 97.59 -   >> Back to DIN Standards
