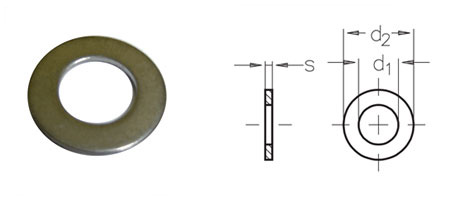

Products DIN Standards BS 4320 Flat Washer C, D
	Size No I.D OD THK Weight for KG / 1000 PCS       Type C Type D Type C Type D M4 4.3 9 0.8   0.31   M6 6.4 12.5 1.6 0.8 1.14 0.57 M10 10.5 21 2 1.25 4.1 2.56 M12 13 24 2.5 1.6 6.3 4.03 M16 17 30 3 2 11.35 7.57 M18 19 34 3 2 14.77 9.85 M24 25 44 4 2.5 32.48 20.3 M30 31 56 4 2.5 53.88 33.68 M36 37 66 5 3 92.5 55.5     >> Back to DIN Standards
