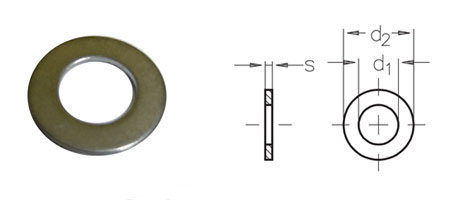

Products DIN Standards BS 4320 Flat Washer A, B
	Size No I.D OD THK Weight for KG / 1000 PCS       Type A Type B Type A Type B M4 4.3 10 0.8   0.4   M6 6.4 14 1.6 0.8 1.54 0.77 M10 10.5 24 2 1.25 5.77 3.61 M12 13 28 2.5 1.6 9.52 6.1 M16 17 34 3 2 16.11 10.74 M20 21 39 3 2 20.07 13.38 M24 25 50 4 2.5 46.45 29.03 M27 28 56 4 2.5 58.27 36.42 M33 34 66 5 3 99.1 59.46   >> Back to DIN Standards
