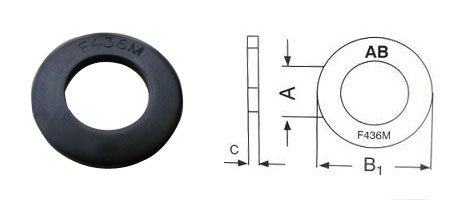

Products DIN Standards ASTM F436M Hardened Washer
	Size No I.D O.D THK Weight for KG / 1000 PCS       MIN MAX   M12 14 27 4.6 3.1 11.69 M14 16 30 4.6 3.1 14.21 M16 18 34 4.6 3.1 18.29 M20 22 42 4.6 3.4 29.64 M22 24 44 4.6 3.4 31.51 M24 26 50 4.6 3.4 42.68 M27 30 56 4.6 3.4 52.14 M30 33 60 4.6 3.4 58.62 M33 36 66 4.6 3.4 71.82 M36 39 72 4.6 3.4 86.36 M39 42 78 4.6 3.4 102.23 M42 45 84 7.2 4.6 175.25 M45 48 90 7.2 4.6 202.52 M48 52 95 7.2 4.6 220.93 M52 58 104 8.7 6.1 309.92 M56 62 107 8.7 6.1 334.13 M64 70 118 8.7 6.1 397.48 M72 78 130 8.7 6.1 475.97 M80 86 142 8.7 6.1 562.57 M90 96 159 8.7 6.1 710.57 M100 107 176 8.7 6.1 866.05     >> Back to DIN Standards
