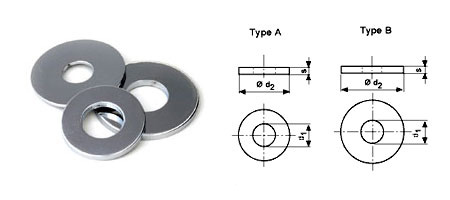

Products DIN Standards DIN 6903-Flat Washers
	Size No I.D O.D THK Weight for KG / 1000 PCS     Type A Type B Type A Type B Type A Type B ST 2.9 2.5 7 9 1 1 0.26 0.46 ST 3.5 3 8 11 1 1 0.34 0.69 ST 3.9 3.3 9 12 1 1 0.43 0.82 ST 4.2 3.55 9 12 1 1 0.42 0.81 ST 4.8 4 10 15 1 1.6 0.52 2.06 ST 5.5 4.7 12 15 1.6 1.6 1.2 2 ST 6.3 5.4 14 18 1.6 1.6 1.65 2.91 ST 8 7.15 16 24 1.6 2 2.02 6.47   >> Back to DIN Standards
